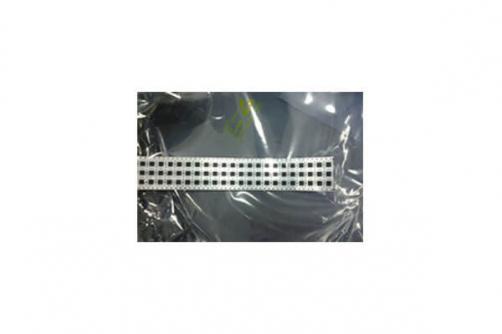

This IC card chip series is developed by Shanghai FM Co., Ltd. Its organization is 4KX8bits EEPROM. There is a 10cm maximum communication range existing between the contactless card and the reader antenna. Exchange of date half duplex occurs at the rate of 106-kbits/s.
The three components of the contactless smart card are antenna, FM11RF32 IC card chip, and the PET or PVC made card base. This product requires no battery. As soon as the IC card chip is placed in the vicinity of the coupling device antenna, transmission of data with 106-Kbit/s is initiated over the high speed RF communication interface
The China-based Fudan Microelectronics produces and supplies 32Kbits contactless IC card chip throughout China. We have a wide range of products including application specific integrated circuits, contactless chip with CPU, 32M-bit flash memory and lots more.
•Operating distance: up to 100mm (depending on antenna geometry)
•Operating frequency: 13.56MHz
•Fast communication baud rate: 106Kbit/s
•Half duplex communication protocol using handshake
•Compatible: with ISO/IEC 14443-A
•Encryption algorithm compatible with M1 standard
•Typical Ticking Transaction: <100ms
•High security level data communication
•Organized in 32 sectors of 4 blocks and 8 sectors of 16 blocks (one block consists of 16byte).
•Each sector has its own two secret keys for systems using key hierarchies.
•Assess conditions for each block defined by user
•Data Retention: 10 Years
