Introduction
FM12XX family approach The FM12XX  family members featuresa modular set of devices with: .
Pre-installed applications complianttoPBOC2.0*
ISO Contact Interface : ISO/IEC 7816 .
ISO Contactless Interface: ISO/IEC 14443-A
SecuredTriple-DES
RSA
SHA-1
EPROM
Size:4K/8K/16K/32K  Byte   Write
Endurance: >100000 cycles
DataRetension: >10years * PBOC2.0 is a smart card standard delivered by The People's Bank of China.

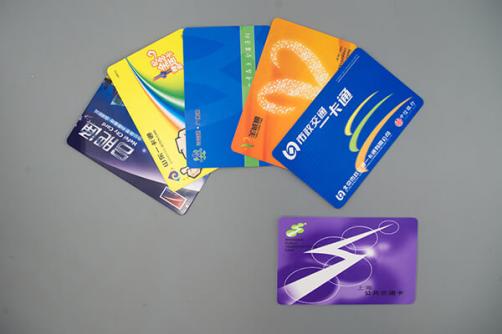

FM12xx is designed to complement general-purpose smart card controllers in Shanghai Fudan Microelectronics Co., Ltd’s ‘Security & Identification’ products for Identification Cards, Transportation Cards, or E-payment applications, etc.. The FM12xx family support Triple-DES symmetric cryptography, ISO/IEC 7816 contact interface and ISO/IEC 14443-A contactless interface, which are widely used in the world. The learning curve for implementers is quick, as the product is based on well-known standards. By using FM12xx, applications can easily developed and validated within days. Applications compliant to PBOC2.0 are pre-installed, this allow FM12xx can be used for E-payment Cards, ID Cards, or Transportation Cards.

Feature RF Interface :ISO/IEC 14443-A
•Contactless transmission of data and powered by the RF field (no battery needed)
•Operating distance: up to 100 mm (depending on antenna geometry)
•Operating frequency: 13.56 MHz
•True deterministic anti-collision mechanism
•Data transfer: 106 kbits/s
Contact Interface : ISO/IEC 7816
8 bit CPU, 8051 Instruction sets
ROM (Program Memory): 32K/64K Byte

EEPROM (Data Memory)
•Size: 4K/8K/16K/32K Byte
•Write Endurance: >100000 cycles
•Data Retension: >10 years
256 × 8 bit iRAM
384/2048/4096 × 8 bit xRAM
4-byte unique identifier

Security Features
•Secure Triple-DES
•Hardware DES using 112-bit keys
•RSA: 1024~2048 bit
•SHA-1
•DPA/SPA resistant
•Anti reverse-engineering
•Self-securing file system
•Memory data encryption (ROM EEPROM RAM)
•Low voltage sensors
•Low/High frequency sensors
